Google Maps Weather: Add a weather layer to Google Maps

In this blog post, we're going to use the Google Weather API to bring back the 2011 Google Maps weather layer, refreshed for the modern web! As always, full source code (both frontend and backend) is available on GitHub, along with a live demo at https://google-maps-weather.afi.dev/.

Part 1: Meet the Google Weather API: Real time weather for maps
Part 2: Build a weather app with the Google Weather API
Part 3: Google Maps weather along route: Weather aware route planner
Part 4: Google Maps Weather: Add a weather layer to Google Maps (this article)

Check the weather for any location on Google Maps

How to use the Google Weather API to check the current and forecasted weather for any location in the world.

Can I see weather on Google Maps?

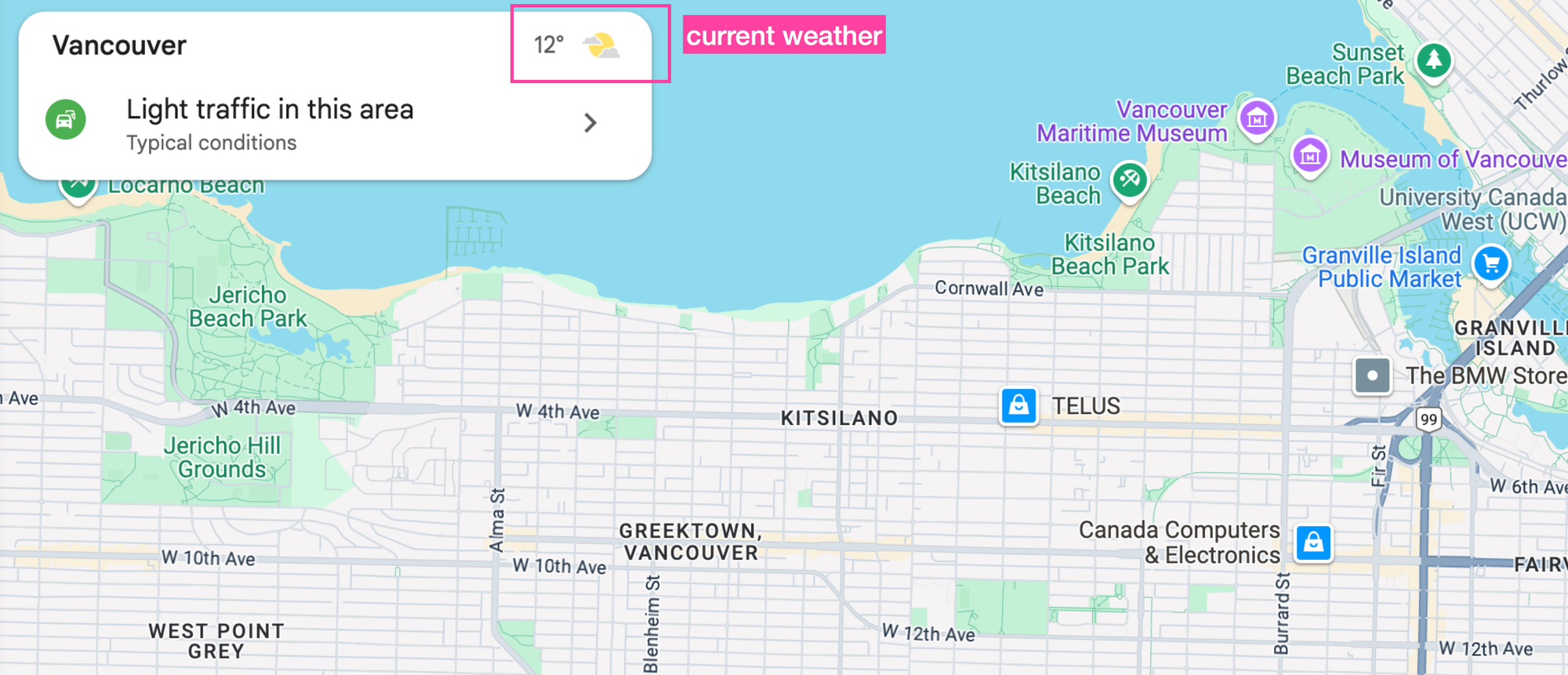

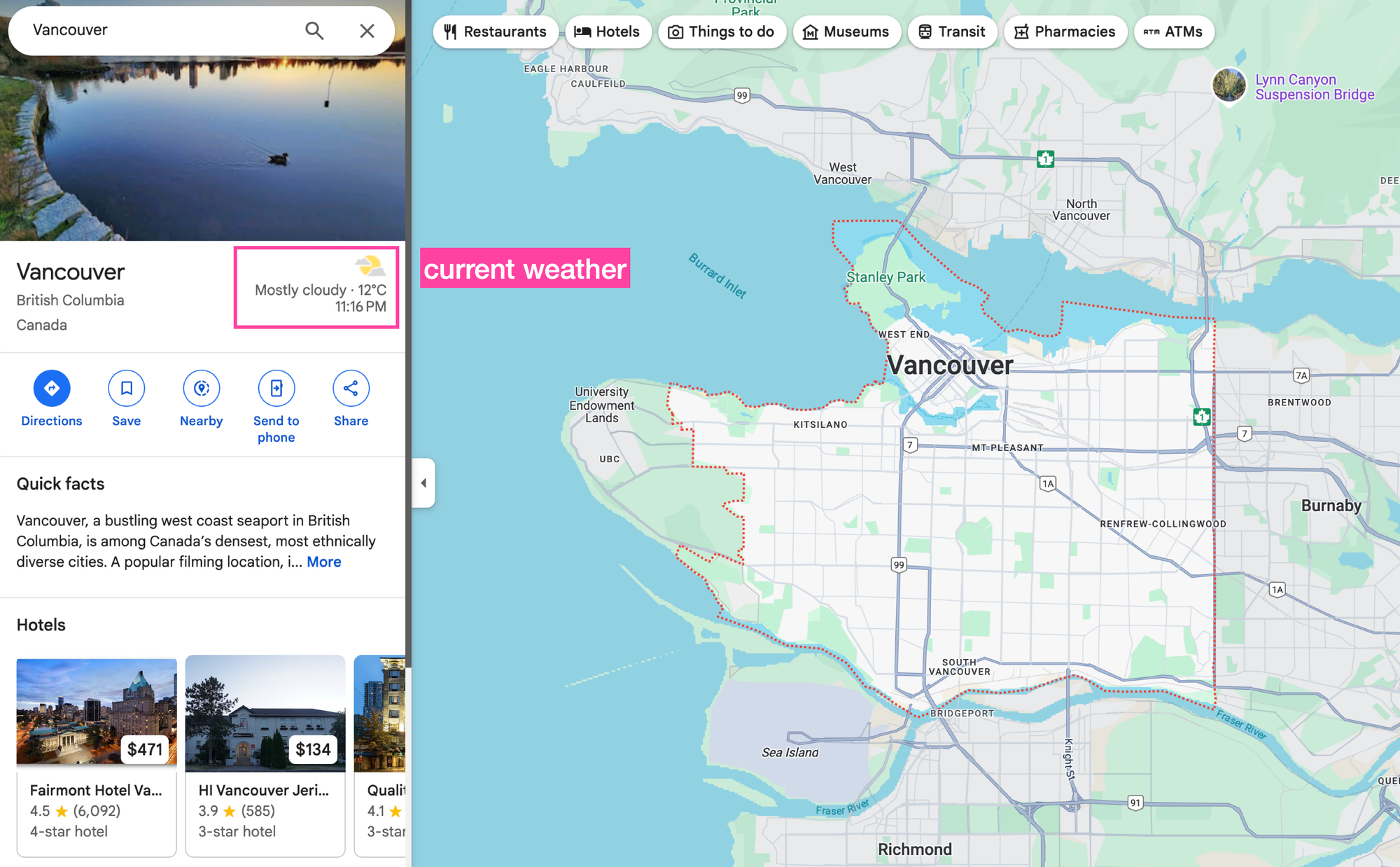

Yes, you can - but you'll need to look closely. When you search for a major city or neighborhood (e.g. "Vancouver"), the current temperature and a weather icon will appear in the top left corner, next to the location name. Weather is only shown for search results that return a locality (as defined by Google Place Types).

You can still view the weather for any location on the map by clicking the empty search bar. The weather will then appear in a separate info box.

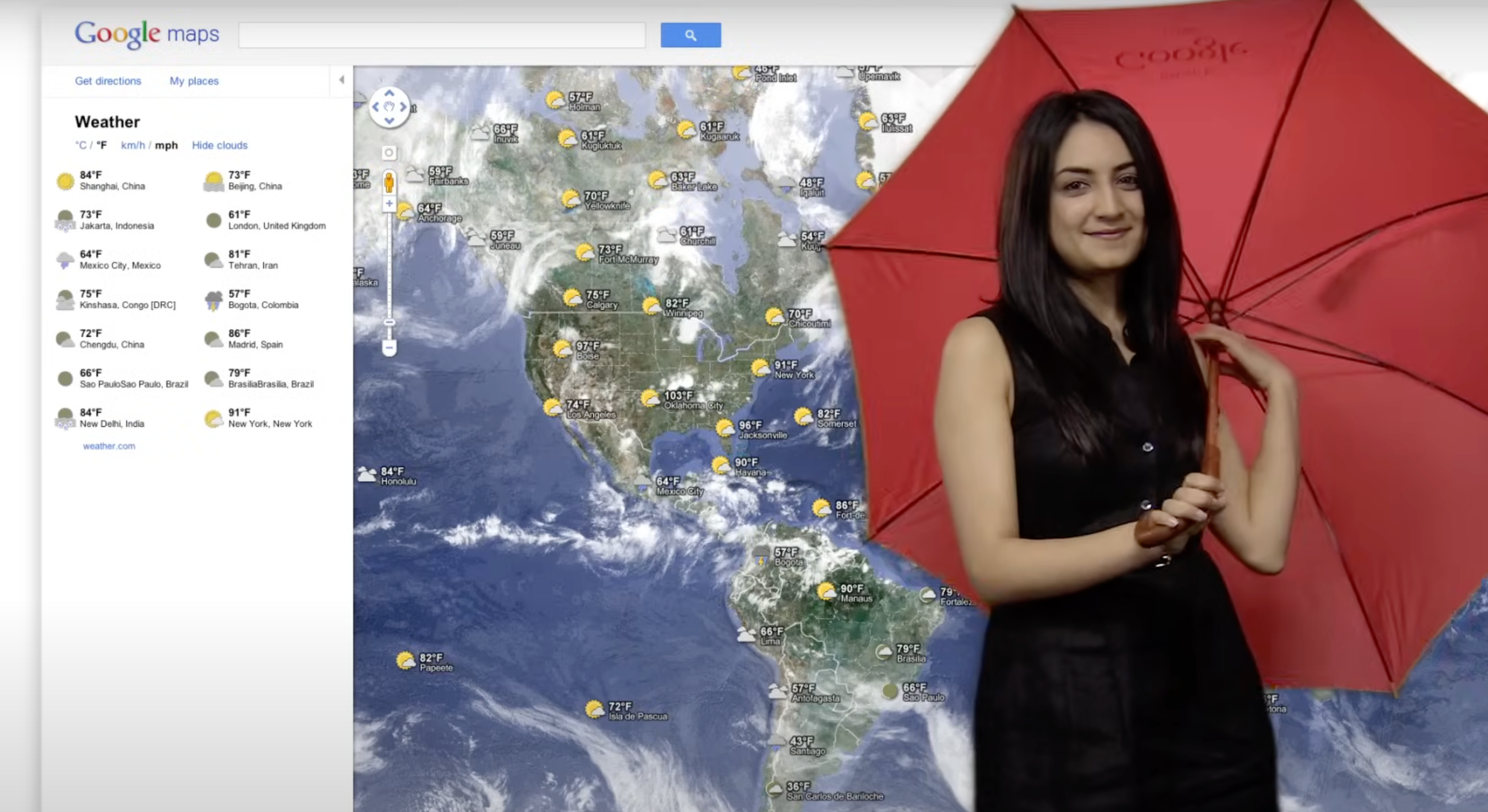

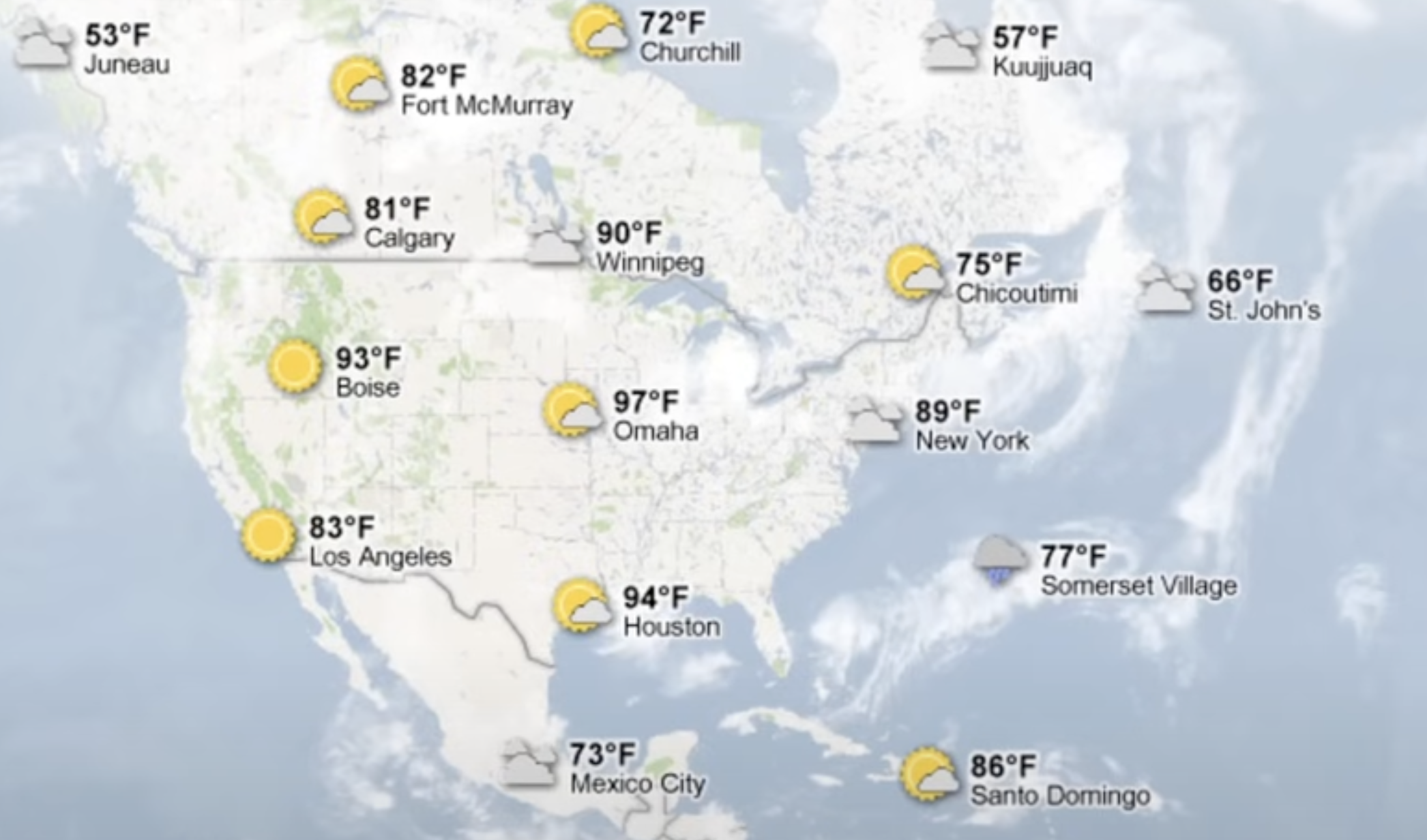

What is missing though is the 2011 Google Maps weather layer (Rain or shine, see the weather in Google Maps) that came with a 1990s news show weather board. The weather layer was quietly discontinued around mid 2015. Google never issued a formal announcement, but it was one of several features removed during the transition from Classic Maps to the newer Maps interface.

Now, more than a decade later, we are going to use the Current Conditions and Forecast Days endpoint of the Google Weather API to recreate it.

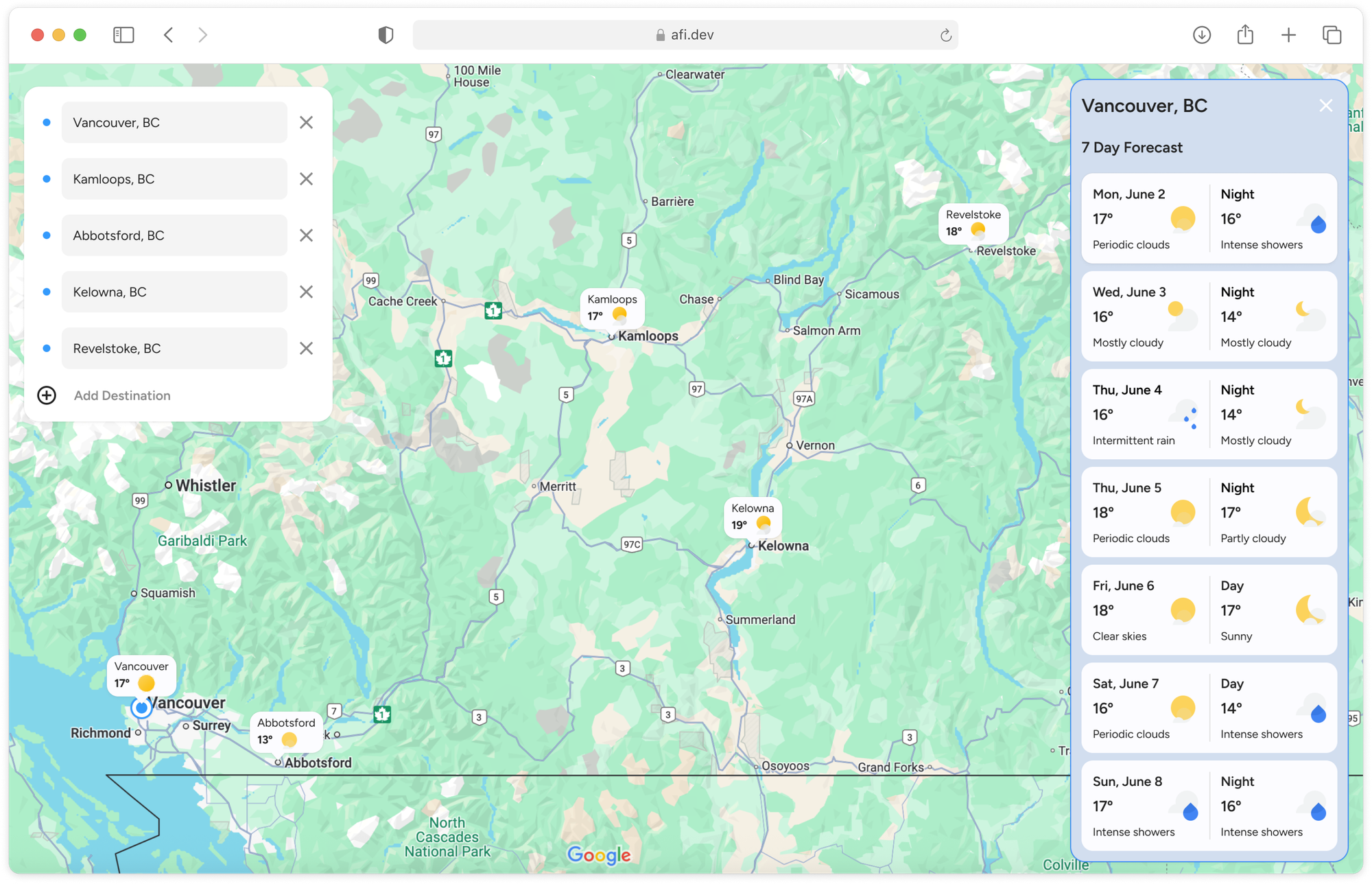

What we are going to build: A Google Maps Weather app

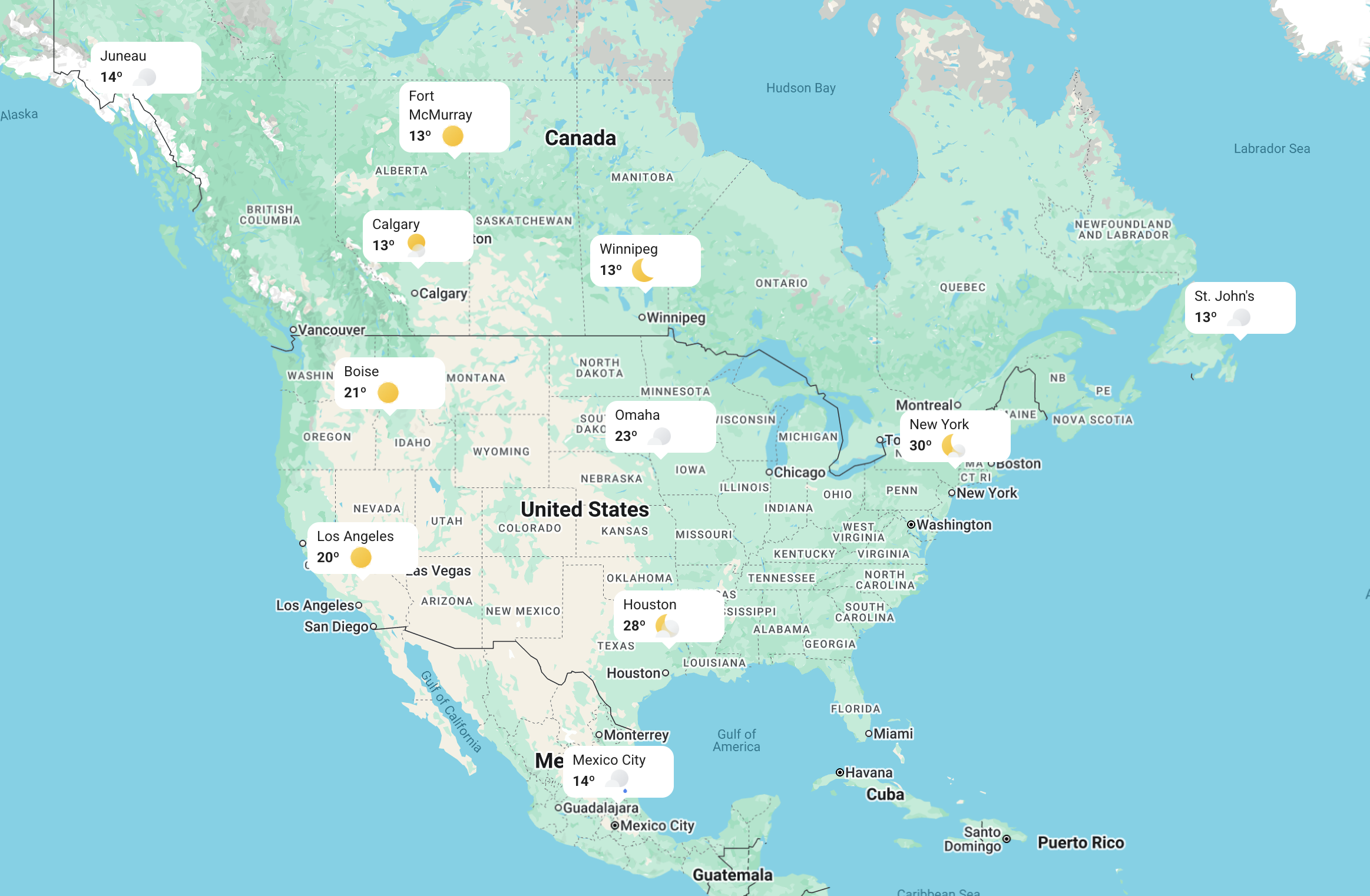

Google Maps Weather allows users to search for and add locations using a Google Place Autocomplete search box. When a user selects a location, the app retrieves its coordinates and uses the Google Weather API to display the current weather and a 7-day forecast. Each added location appears on a map with a weather icon, and detailed forecast information is shown in the right sidebar. Users can add multiple locations to compare weather conditions across different places.

A hotel chain could use it to offer guests real time local weather updates, while a travel agency might add it to their website to highlight sunny weekend destinations and boost bookings.

I’m personally using the app to plan my camping trips this summer. As a software engineer with a flexible schedule, I often have a few days plus the weekend to get out of Vancouver and explore the outdoors. I’m not particular about most things - but I do try to avoid rain because it can make the drive through mountain passes a little spicy. With the Google Maps Weather app, I can add several potential camping spots to the map and easily choose the one with the best chance of sunny weather. Or failing that, pack and plan my route accordingly.

Adding a weather overlay to Google Maps Weather

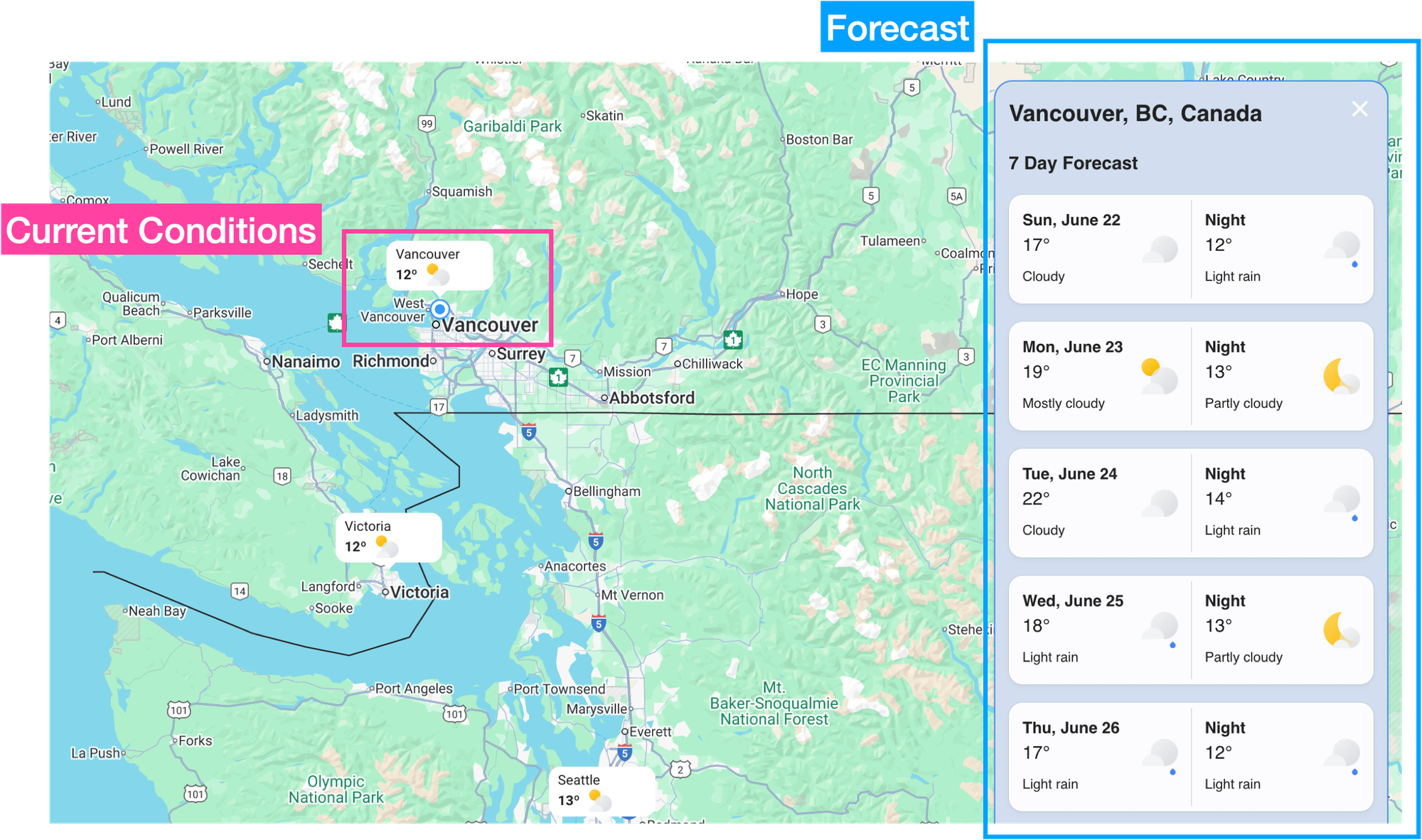

To build the weather layer, we'll use two key endpoints from the Google Weather API:

• Current Conditions – Provides the latest weather data for a specific location. This information will appear on that location's map marker.
• Forecast – Returns weather forecasts for up to 10 days, starting from today. We'll display this in a sidebar on the right.

In the next section, I'll explain how both endpoints work, what data they need, and how to interpret the response.

Google Maps weather current conditions endpoint

Here's a simple example that shows how to retrieve current weather conditions for Vancouver, Canada (49.246292, -123.116226).

Endpoint: GET

https://weather.googleapis.com/v1/currentConditions:lookup?key={YOUR_API_KEY}
&location.latitude={LATITUDE}
&location.longitude={LONGITUDE}

{YOUR_API_KEY} This is your Google Maps API key with the Google Weather API enabled.

{LATITUDE} The latitude coordinates of the location you want to get weather for.

{LONGITUDE} The longitude coordinates of the location you want to get weather for.

Using 49.246292, -123.116226 for latitude and longitude gives us:

Response

{
    "currentTime": "2025-06-23T01:25:15.062707123Z",
    "timeZone": {
        "id": "America/Vancouver"
    },
    "isDaytime": true,
    "weatherCondition": {
        "iconBaseUri": "https://maps.gstatic.com/weather/v1/mostly_cloudy",
        "description": {
            "text": "Mostly cloudy",
            "languageCode": "en"
        },
        "type": "MOSTLY_CLOUDY"
    },
    "temperature": {
        "degrees": 17.6,
        "unit": "CELSIUS"
    },
    "feelsLikeTemperature": {
        "degrees": 17.6,
        "unit": "CELSIUS"
    },
    "dewPoint": {
        "degrees": 12.2,
        "unit": "CELSIUS"
    },
    "heatIndex": {
        "degrees": 17.6,
        "unit": "CELSIUS"
    },
    "windChill": {
        "degrees": 17.6,
        "unit": "CELSIUS"
    },
    "relativeHumidity": 71,
    "uvIndex": 0,
    "precipitation": {
        "probability": {
            "percent": 7,
            "type": "RAIN"
        },
        "snowQpf": {
            "quantity": 0,
            "unit": "MILLIMETERS"
        },
        "qpf": {
            "quantity": 0,
            "unit": "MILLIMETERS"
        }
    },
    "thunderstormProbability": 0,
    "airPressure": {
        "meanSeaLevelMillibars": 1019.3
    },
    "wind": {
        "direction": {
            "degrees": 180,
            "cardinal": "SOUTH"
        },
        "speed": {
            "value": 6,
            "unit": "KILOMETERS_PER_HOUR"
        },
        "gust": {
            "value": 15,
            "unit": "KILOMETERS_PER_HOUR"
        }
    },
    "visibility": {
        "distance": 16,
        "unit": "KILOMETERS"
    },
    "cloudCover": 70,
    "currentConditionsHistory": {
        "temperatureChange": {
            "degrees": 1.2,
            "unit": "CELSIUS"
        },
        "maxTemperature": {
            "degrees": 18.2,
            "unit": "CELSIUS"
        },
        "minTemperature": {
            "degrees": 11.3,
            "unit": "CELSIUS"
        },
        "snowQpf": {
            "quantity": 0,
            "unit": "MILLIMETERS"
        },
        "qpf": {
            "quantity": 1.3411,
            "unit": "MILLIMETERS"
        }
    }
}

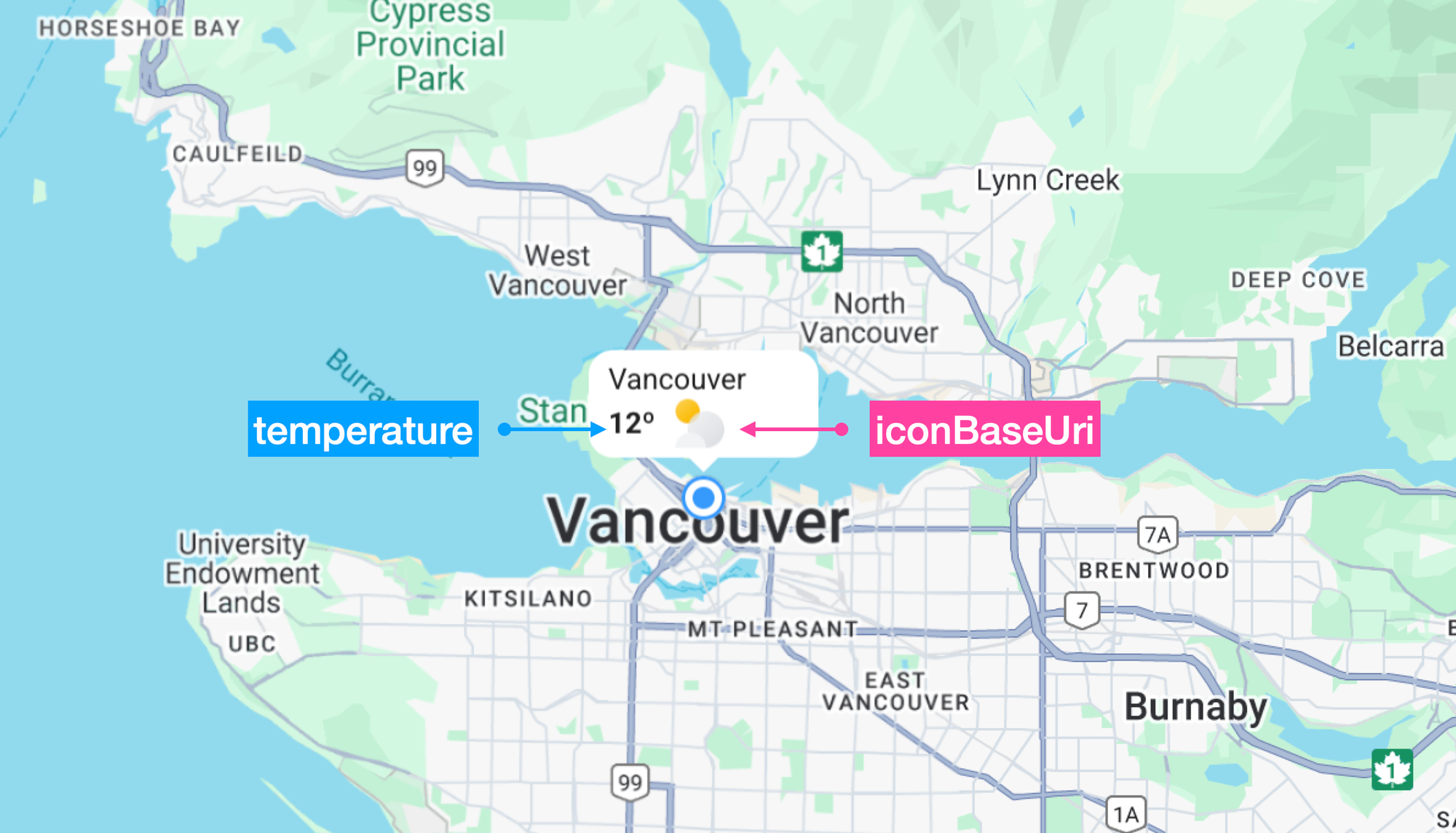

The Current Conditions endpoint of the Google Weather API returns detailed real time weather data for a specific location based on its latitude and longitude. To display the weather on a map marker, we'll need to extract two pieces of data from the response:

1. weatherCondition.iconBaseUri, the URL of the associated weather icon. We append a ".png" or ".svg" to the URL to retrieve the icon directly e.g. https://maps.gstatic.com/weather/v1/mostly_cloudy_night.png.
2. temperature, the temperature for the given location in degrees celsius (switch units to degrees Fahrenheit by adding unitsSystem=IMPERIAL to the request).

The place name e.g. "Vancouver" comes from Place Autocomplete when the user types into the autocomplete search box and selects a location.

Google Maps weather 7 day forecast endpoint

Here's a different example that shows how to retrieve the seven-day weather forecast for Vancouver, Canada (49.246292, -123.116226).

Endpoint: GET

https://weather.googleapis.com/v1/forecast/days:lookup?key={YOUR_API_KEY}
&location.latitude={LATITUDE}
&location.longitude={LONGITUDE}
&days={DAYS}

{YOUR_API_KEY} is the is your Google Maps API key with the Google Weather API enabled.

{LATITUDE} is latitude coordinate of the location you want to get weather for.

{LONGITUDE} is the longitude coordinate of the location you want to get weather for.

{DAYS} is the number of days you want to get the forecast for. If you don't set it, it defaults to the maximum of 10 days.

Endpoint: GET

https://weather.googleapis.com/v1/forecast/days:lookup?key={YOUR_API_KEY} &location.latitude=49.246292&location.longitude=-123.116226&days=7

Response

{
    "forecastDays": [
        {
            "interval": {
                "startTime": "2025-06-22T14:00:00Z",
                "endTime": "2025-06-23T14:00:00Z"
            },
            "displayDate": {
                "year": 2025,
                "month": 6,
                "day": 22
            },
            "daytimeForecast": {
                "interval": {
                    "startTime": "2025-06-22T14:00:00Z",
                    "endTime": "2025-06-23T02:00:00Z"
                },
                "weatherCondition": {
                    "iconBaseUri": "https://maps.gstatic.com/weather/v1/mostly_cloudy",
                    "description": {
                        "text": "Mostly cloudy",
                        "languageCode": "en"
                    },
                    "type": "MOSTLY_CLOUDY"
                },
                "relativeHumidity": 77,
                "uvIndex": 4,
                "precipitation": {
                    "probability": {
                        "percent": 20,
                        "type": "RAIN"
                    },
                    "snowQpf": {
                        "quantity": 0,
                        "unit": "MILLIMETERS"
                    },
                    "qpf": {
                        "quantity": 0,
                        "unit": "MILLIMETERS"
                    }
                },
                "thunderstormProbability": 0,
                "wind": {
                    "direction": {
                        "degrees": 152,
                        "cardinal": "SOUTH_SOUTHEAST"
                    },
                    "speed": {
                        "value": 11,
                        "unit": "KILOMETERS_PER_HOUR"
                    },
                    "gust": {
                        "value": 21,
                        "unit": "KILOMETERS_PER_HOUR"
                    }
                },
                "cloudCover": 99,
                "iceThickness": {
                    "thickness": 0,
                    "unit": "MILLIMETERS"
                }
            },
            "nighttimeForecast": {
                "interval": {
                    "startTime": "2025-06-23T02:00:00Z",
                    "endTime": "2025-06-23T14:00:00Z"
                },
                "weatherCondition": {
                    "iconBaseUri": "https://maps.gstatic.com/weather/v1/drizzle",
                    "description": {
                        "text": "Light rain",
                        "languageCode": "en"
                    },
                    "type": "LIGHT_RAIN"
                },
                "relativeHumidity": 85,
                "uvIndex": 0,
                "precipitation": {
                    "probability": {
                        "percent": 20,
                        "type": "RAIN"
                    },
                    "snowQpf": {
                        "quantity": 0,
                        "unit": "MILLIMETERS"
                    },
                    "qpf": {
                        "quantity": 0,
                        "unit": "MILLIMETERS"
                    }
                },
                "thunderstormProbability": 10,
                "wind": {
                    "direction": {
                        "degrees": 108,
                        "cardinal": "EAST_SOUTHEAST"
                    },
                    "speed": {
                        "value": 14,
                        "unit": "KILOMETERS_PER_HOUR"
                    },
                    "gust": {
                        "value": 24,
                        "unit": "KILOMETERS_PER_HOUR"
                    }
                },
                "cloudCover": 99,
                "iceThickness": {
                    "thickness": 0,
                    "unit": "MILLIMETERS"
                }
            },
            "maxTemperature": {
                "degrees": 18.2,
                "unit": "CELSIUS"
            },
            "minTemperature": {
                "degrees": 12.8,
                "unit": "CELSIUS"
            },
            "feelsLikeMaxTemperature": {
                "degrees": 18.2,
                "unit": "CELSIUS"
            },
            "feelsLikeMinTemperature": {
                "degrees": 12,
                "unit": "CELSIUS"
            },
            "sunEvents": {
                "sunriseTime": "2025-06-22T12:07:17.528986309Z",
                "sunsetTime": "2025-06-23T04:21:54.967845012Z"
            },
            "moonEvents": {
                "moonPhase": "WANING_CRESCENT",
                "moonriseTimes": [
                    "2025-06-22T09:21:52.296756418Z"
                ],
                "moonsetTimes": [
                    "2025-06-23T01:58:48.064038761Z"
                ]
            },
            "maxHeatIndex": {
                "degrees": 18.2,
                "unit": "CELSIUS"
            }
        },
        ...// 4 more entries
    ],
    "timeZone": {
        "id": "America/Vancouver"
    },
    "nextPageToken": "ChYKEgkaogp_hp9IQBF5PC0_cMdewBAHEAUYBSIMCLjI48IGEIKPsLgBKhFBbWVyaWNhL1ZhbmNvdXZlcg=="
}

The response from the Forecast endpoint of the Google Weather API is an array, forecastDays, where each entry represents the daily weather forecast at a given location.

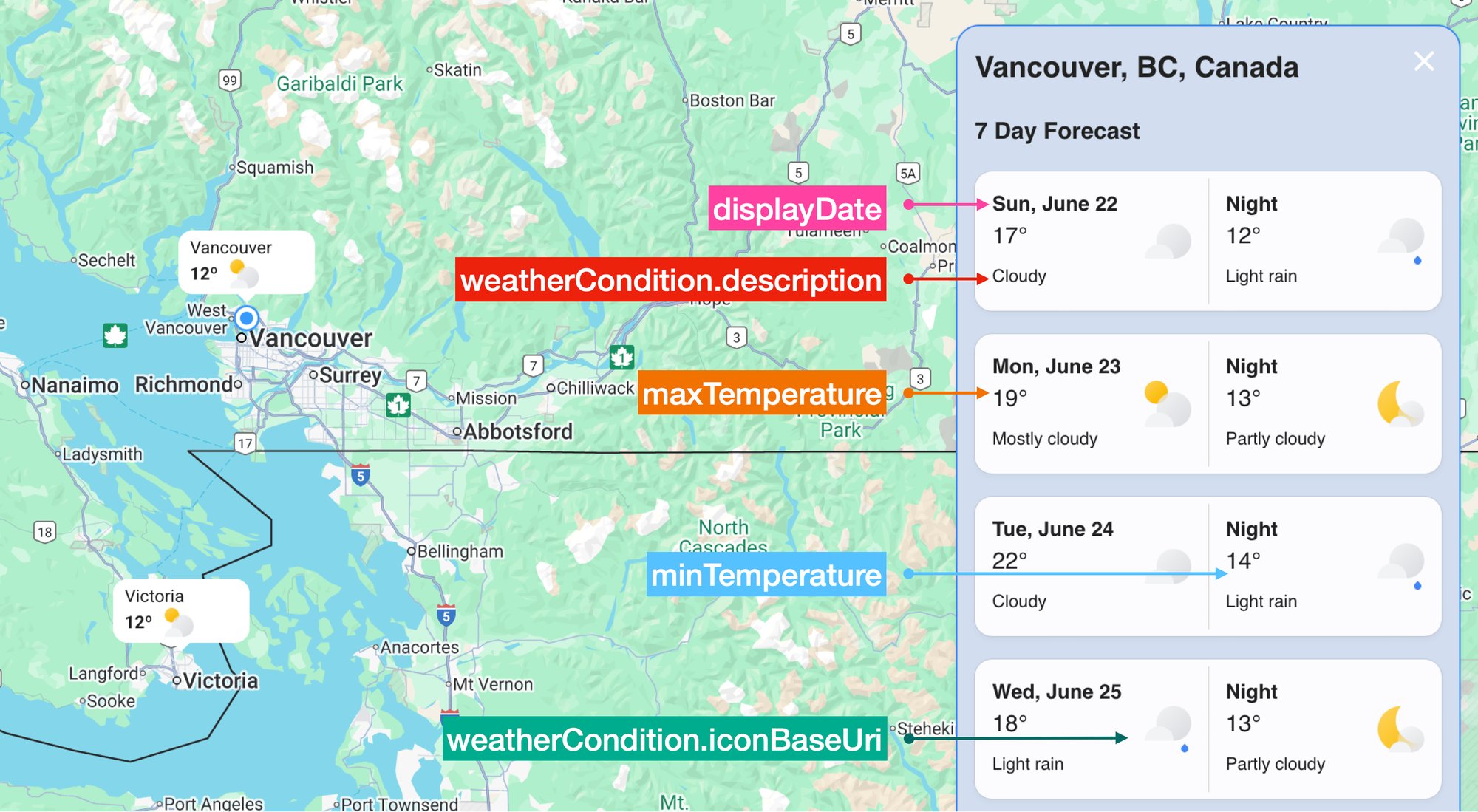

The key fields we extract from the response are:

1. displayDate, a human readable date (year, month, and day) that we display on the frontend in ddd, MMMM D format e.g. "Sun, June 22" using the ever so useful dayjs library.
2. weatherCondition.description, a human readable summary of the forecasted weather e.g. "Cloudy", "Mostly Cloudy" or "Light Rain".
3. maxTemperature, the forecasted maximum (high) temperature during the day.
4. minTemperature, the forecasted minimum (low) temperature at night.
5. weatherCondition.iconBaseUri, the URL of the associated weather icon.

Building a Google Maps weather app

In this last section, I'll show you how to build a Google Maps weather app comparable to popular online weather services such as Weather Underground, Weather.gov, Windy and Zoom Earth.

There are two ways to follow along. If you have some software engineering experience, you should fork google_maps_weather and run the app locally. Try making small tweaks e.g. changing marker styles and reload the app to see if the changes worked. If you don't want to pull code from GitHub, you can still play around with a live demo at https://google-maps-weather.afi.dev/.

How our code is organized

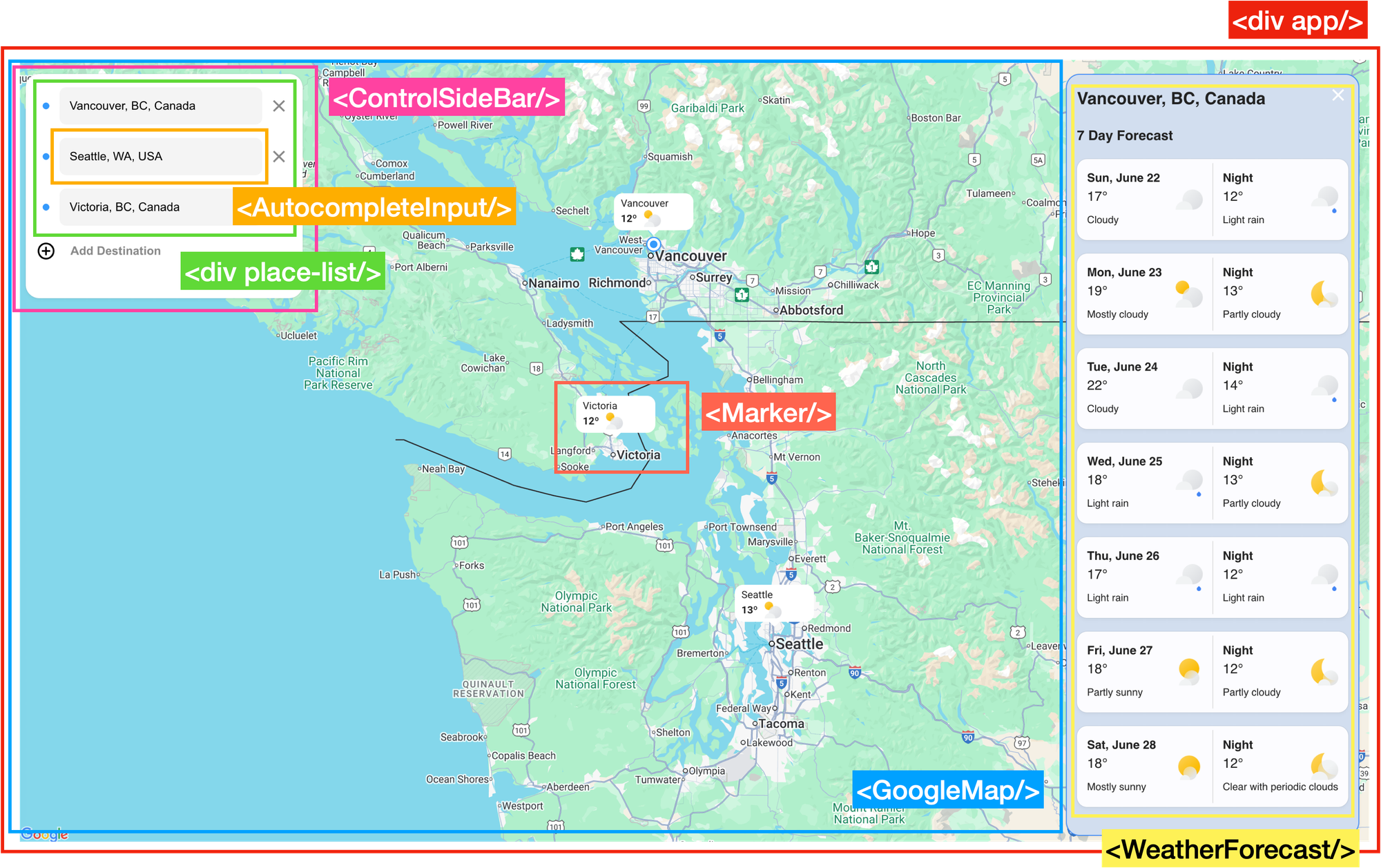

google_maps_weather overlays current weather conditions on a Google Map. It works together with google_weather_backend, which retrieves place data from Google Place Autocomplete and fetches weather information from the Current Conditions and Forecast Days endpoints of the Google Weather API.

App.jsx

App.jsx is the main entry point of the app. It defines the layout, handles state, and fetches data from the Google Places and Weather APIs.

App.jsx has three child components:

<ControlSideBar/> displays a list of Place Autocomplete search boxes where users can look up and select locations to see weather information

<WeatherForecast/>: Displays the seven day weather forecast for the selected location using the Weather API's Forecast endpoint.

<GoogleMap/>: A wrapper for the react-google-maps <Map/> component. It's responsible for displaying <Marker/> components and adjusting the viewport each time a new location is added so that all the locations are visible on the map.

App.jsx is also responsible for implementing an API loading wrapper design pattern to fetch data from the Google Weather API whenever a new location is selected. In handleSetActive(), App.jsx calls the fetchForecast() function from /services/google.js, passing in noOfDays, latitude, and longitude to retrieve the seven-day forecast for the selected location.

/*** App.jsx ***/
const handleSetActive = async (place) => {
  if (!place) return;

  setActivePlace((prev) => (prev?.place_id === place.place_id ? null : place));
  const result = await fetchForecast({
    noOfDays: 7,
    latitude: place.geometry.location.lat(),
    longitude: place.geometry.location.lng(),
  });

  setNextForecast(result);
};

Similarly, in the useEffect() method, App.jsx calls the fetchWeatherData() method of /services/google.js to get the current weather at that location.

useEffect(() => {
  const newValidPlaces = places.filter(
    (place) => place.place_id && !placeWeatherData[place.place_id],
  );

  newValidPlaces.forEach(async (place) => {
    const position = {
      lat: place.geometry.location.lat(),
      lng: place.geometry.location.lng(),
    };

    const weather = await fetchWeatherData(position);

    setPlaceWeatherData((prev) => ({ ...prev, [place.place_id]: weather }));
  });
}, [places]);

Google.js

google.js acts as a service layer for interacting with the Google Weather API. It contains helper functions that wrap API calls to fetch weather data. For example, the fetchForecast() method we called in App.jsx retrieves a multi day forecast for a specific location based on the number of days (noOfDays) and geographic coordinates (latitude and longitude).

/*** services/google.js ***/
export const fetchForecast = async ({ noOfDays, latitude, longitude }) => {
  try {
    const response = await axios.get(`${WEATHER_API_URL}/forecast`, {
      params: { latitude, longitude, days: noOfDays },
    });

    if (
      !response.data.forecastDays ||
      response.data.forecastDays.length === 0
    ) {
      throw new Error("No forecast data available");
    }

    return response.data.forecastDays;
  } catch (error) {
    if (error.response) {
      throw new Error(`Server error: ${error.response.status}`);
    } else if (error.request) {
      throw new Error("No response from server");
    } else {
      throw new Error(`Request error: ${error.message}`);
    }
  }
};

fetchForecast() uses Axios, a popular promise-based HTTP client for Javascript. Here's how it works:

1. First, we import Axios at the top of google.js.

import axios from 'axios';

2. Next, we uses axios.get to make a GET call to the Forecast Days endpoint (https://weather.googleapis.com/v1/forecast/days:lookup) of the Google Weather API (WEATHER_API_URL points to google_weather_backend, which makes the follow-on API call to the Google Weather API).

const response = await axios.get(`${WEATHER_API_URL}/forecast`, {
  params: { latitude, longitude, days: noOfDays },
});

3. Axios automatically parses the JSON response and handles any errors with a try/catch code block. This lets us distinguish between server errors (like 500), network failures (no response) by throwing a specific error message for each case.

try {
  //... Axios GET call

  return response.data.forecastDays;
} catch (error) {
  if (error.response) {
    throw new Error(`Server error: ${error.response.status}`);
  } else if (error.request) {
    throw new Error("No response from server");
  } else {
    throw new Error(`Request error: ${error.message}`);
  }
}

Similarly, the fetchCurrentWeather() function in google.js uses Axios to call the Current Conditions endpoint of the Google Weather API. It then simplifies the response to include only the time, time zone, temperature in degrees, and a weather icon URL representing the conditions at the selected location.

/*** services/google.js ***/
export const fetchCurrentWeather = async (location) => {
  try {
    const { lat, lng } = location;
    const response = await axios.get(`${WEATHER_API_URL}/current-conditions`, {
      params: { latitude: lat, longitude: lng },
    });

    const parsedResponse = {
      time: response.data.currentTime,
      timeZone: response.data.timeZone.id,
      degree: response.data.temperature.degrees,
      iconUrl: response.data.weatherCondition.iconBaseUri + ".png",
    };

    return parsedResponse;
  } catch (error) {
    console.error("Error fetching weather data:", error);
    throw error;
  }
};

In summary, the code in google.js acts as an API wrapper that retrieves current and daily weather forecasts from the Google Weather API, and formats the responses to make it easy to use throughout the app.

ControlSideBar.jsx

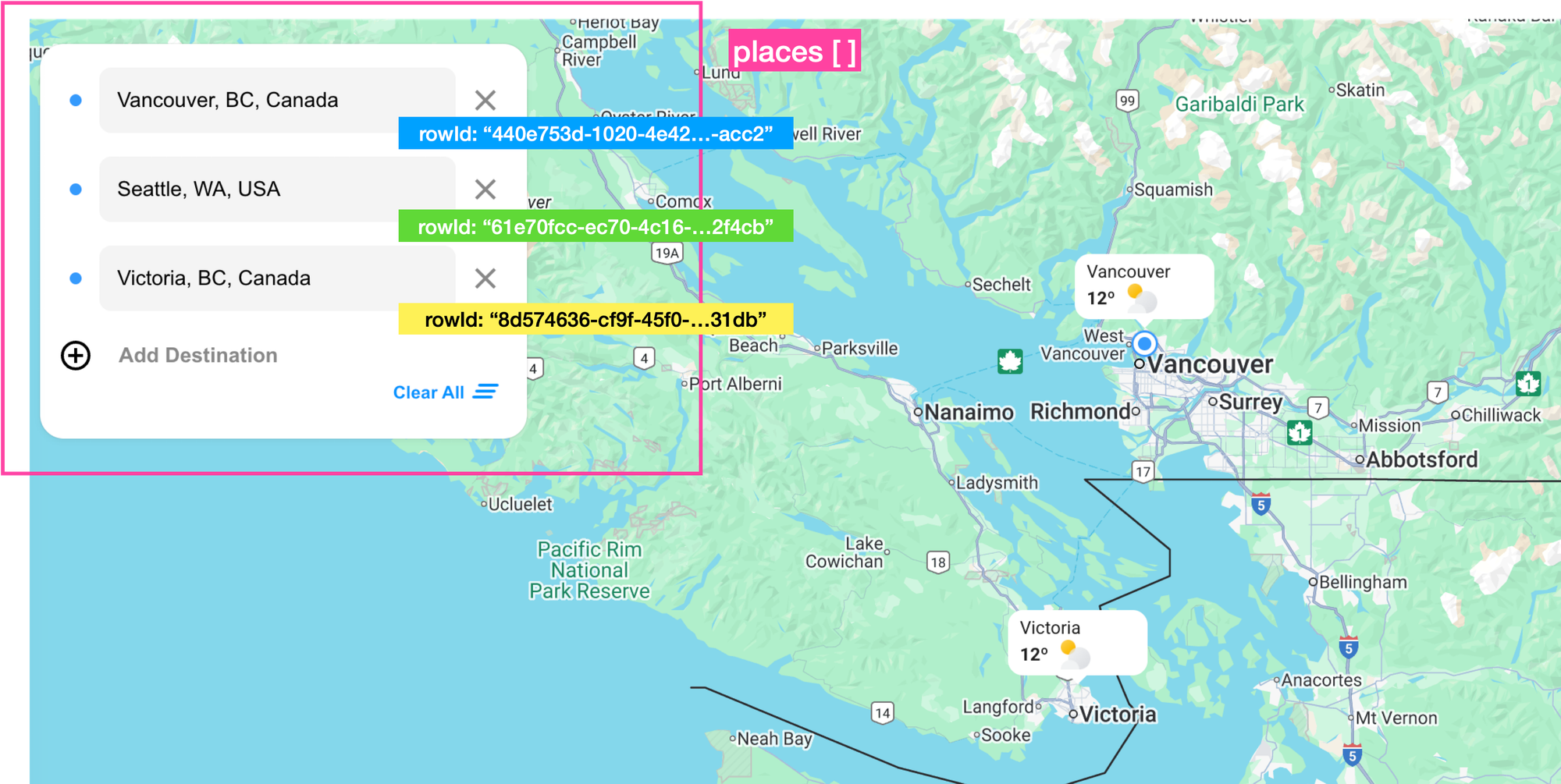

ControlSideBar.jsx is a React UI panel that allows users to manage the list of destination places. The component doesn’t hold its own state - it knows what to render based on the data contained in the places array which it receives as a prop from App.jsx.

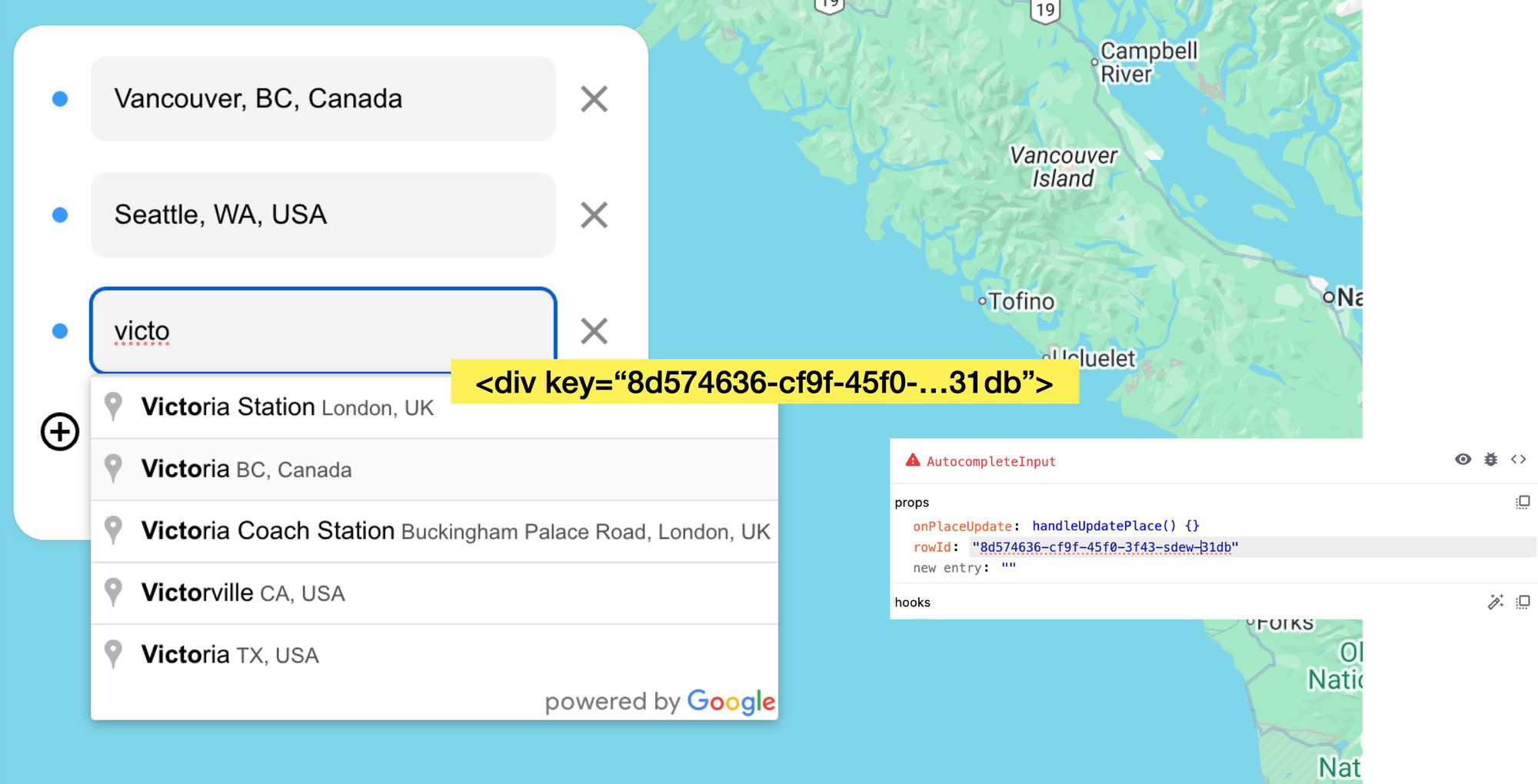

Each time the places array is updated, for example when you click [Add Destination] and enter a valid address, ControlSideBar.jsx loops through the places array and renders a place-item div, each with a visual marker (.eclipse), an <AutocompleteInput/> text box and an [x] icon that removes the item using onRemovePlace().

/*** components/ControlSideBar.jsx ***/
import AutocompleteInput from "./AutocompleteInput";
import Icon from "./Icon";

import "./ControlSideBar.scss";

const ControlSideBar = ({
  places,
  onAddPlace,
  onPlaceUpdate,
  onRemovePlace,
  onClearAll,
}) => {
  return (
    <aside className="ControlSideBar">
      <div className="place-list">
        {places.map((place) => (
          <div key={place.rowId} className="place-item">
            <div className="eclipse" />

            <AutocompleteInput
              rowId={place.rowId}
              onPlaceUpdate={onPlaceUpdate}
            />

            <Icon type="close" onClick={() => onRemovePlace(place.rowId)} />
          </div>
        ))}
      </div>

      <button className="add-place-btn" onClick={onAddPlace}>
        <Icon type="add" />
        <span>Add Destination</span>
      </button>
      <div className="buttons">
        <button className="btn btn-clear" onClick={onClearAll}>
          Clear All
          <Icon type="clear" />
        </button>
      </div>
    </aside>
  );
};

export default ControlSideBar;

Removing a place

The onRemovePlace() prop is linked to the handleRemovePlace() function in the parent App.jsx. This function updates the places array in state by filtering out the place with a matching rowId. Specifically, it uses .filter((place) => place.rowId !== id) to create a new array that excludes the place with the given id. As a result, the place is removed from both the <ControlSideBar/> and the map.

/*** App.jsx ***/
const handleRemovePlace = (id) => {
  setPlaces((prev) => prev.filter((place) => place.rowId !== id));

  //... code to remove weather data
};

Adding a place

When the user clicks the [Add Destination] button, the onAddPlace() function (passed in as a prop) is called. This function maps to handleAddPlace() in the parent App.jsx. In side handleAddPlace(), we assign the new place object a randomly generated rowId and add it to the existing array of places stored in React state i.e. it is saved to a new array that includes all previous items plus the new one.

/*** App.jsx ***/
const handleAddPlace = () => {
  const newId = crypto.randomUUID();
  setPlaces((prev) => [...prev, { rowId: newId }]);
};

Now, a new place object with only a rowId is added to the places array. When the <ControlSideBar/> component re-renders, a new place-item <div> appears at the end of the list, using the new place object's rowId as its key value.

AutocompleteInput.jsx

The <AutocompleteInput/> component, as the name suggests, contains a text input field that uses Google Places Autocomplete to suggest places dynamically as the user types. When the user selects a place from the dropdown menu, Google triggers a place_changed event on the Autocomplete instance.

AutocompleteInput.jsx listens for this event, uses getPlace() to retrieve the selected place's details (place_id, geometry, name, and formatted_address), and then calls onPlaceUpdate() to pass both the rowId and place data to its parent component.

/*** components/AutocompleteInput.jsx ***/
import { useMapsLibrary } from "@vis.gl/react-google-maps";
import { useEffect, useRef, useState } from "react";

import "./AutocompleteInput.scss";

const AutocompleteInput = ({ onPlaceUpdate, rowId }) => {
  const [placeAutocomplete, setPlaceAutocomplete] = useState(null);
  const inputRef = useRef(null);
  const places = useMapsLibrary("places");

  useEffect(() => {
    if (!places || !inputRef.current) return;

    const options = {
      fields: ["place_id", "geometry", "name", "formatted_address"],
    };

    setPlaceAutocomplete(new places.Autocomplete(inputRef.current, options));
  }, [places]);

  useEffect(() => {
    if (!placeAutocomplete) return;

    placeAutocomplete.addListener("place_changed", () => {
      const place = placeAutocomplete.getPlace();
      onPlaceUpdate(rowId, place);
    });
  }, [onPlaceUpdate, placeAutocomplete]);

  return (
    <div className="AutocompleteInput">
      <input ref={inputRef} placeholder="Select place" />
    </div>
  );
};

export default AutocompleteInput;

onPlaceUpdate() points to the handleUpdatePlace() method in App.jsx, which takes an id and a place object as arguments. This method cleverly updates the places array in state by taking the current state (prev) and mapping through each place object (dest, for destination) in the array and checking to see if the rowId matches the given id. f it does, it returns a new object that merges the existing data (dest) with the updated place data (place); otherwise, it leaves the item unchanged.

/*** App.jsx ***/
const handleUpdatePlace = (id, place) => {
  setPlaces((prev) => {
    return prev.map((dest) =>
      dest.rowId === id ? { ...dest, ...place } : dest,
    );
  });
};

This approach works for both newly added locations and updates to existing ones on the map. The places array is then passed to <GoogleMap/> as a prop, allowing it to place markers that show the current weather at each location.

<GoogleMap
  places={places}
  placeCurrentWeatherData={placeCurrentWeatherData}
  activePlace={activePlace}
  onSelectPlace={handleSetActive}
/>;

GoogleMap.jsx

GoogleMap.jsx (components/GoogleMap/index.jsx) is a wrapper for the react-google-maps <Map/> component, which is itself a React wrapper around the Google Maps Javascript API. It loads and initializes a Google Map instance in the DOM, lets us specify the map’s center, zoom level, and other options via props and acts as a parent container for the <Marker/> component, which we use to display current weather conditions on the map.

This is done by first filtering the places array and keeping only the places that have a valid place_id, and then iterating over this new array and adding a <Marker/> component at each place's position. Each place object is a Google Maps PlaceResult (docs), so we can use the geometry.location.lat() and geometry.location.lng() methods to retrieve its latitude and longitude coordinates.

To retrieve the current weather conditions for each place, we use its unique place_id as the key in the placeCurrentWeatherData object like this: const weatherData = placeCurrentWeatherData[marker.place_id];. This weather data is immediately passed to <Marker/> as a prop.

/*** components/GoogleMap/index.jsx ***/
import { Map, useMap } from "@vis.gl/react-google-maps";

import MapHandler from "./MapHandler";
import Marker from "./Marker";
import { DEFAULT_MAP_CENTER, DEFAULT_MAP_ZOOM } from "~/constants";
const MAP_ID = import.meta.env.VITE_GOOGLE_MAP_ID;

const GoogleMap = ({
  places,
  placeCurrentWeatherData,
  activePlace,
  onSelectPlace,
}) => {
  const map = useMap();
  const markers = places.filter((place) => place.place_id);

  return (
    <div className="GoogleMap">
      <Map
        mapId={MAP_ID}
        style={{ width: "100%", height: "100vh" }}
        defaultZoom={DEFAULT_MAP_ZOOM}
        defaultCenter={DEFAULT_MAP_CENTER}
        gestureHandling="greedy"
        disableDefaultUI={true}
      >
        <MapHandler map={map} stops={markers} />

        {markers.map((marker) => {
          const weatherData = placeCurrentWeatherData[marker.place_id];
          const position = {
            lat: marker.geometry.location.lat(),
            lng: marker.geometry.location.lng(),
          };
          return (
            <Marker
              key={marker.rowId}
              name={marker.name}
              weatherData={weatherData}
              position={position}
              onToggle={() => onSelectPlace(marker)}
              isActive={activePlace?.place_id === marker.place_id}
            />
          );
        })}
      </Map>
    </div>
  );
};

export default GoogleMap;

Marker.js

The <Marker/> component, located in components/GoogleMap/index.jsx is a wrapper for Google Map's AdvancedMarkerElement, which allows us to fully customize our location marker using a combination of SVGs, HTML and CSS..

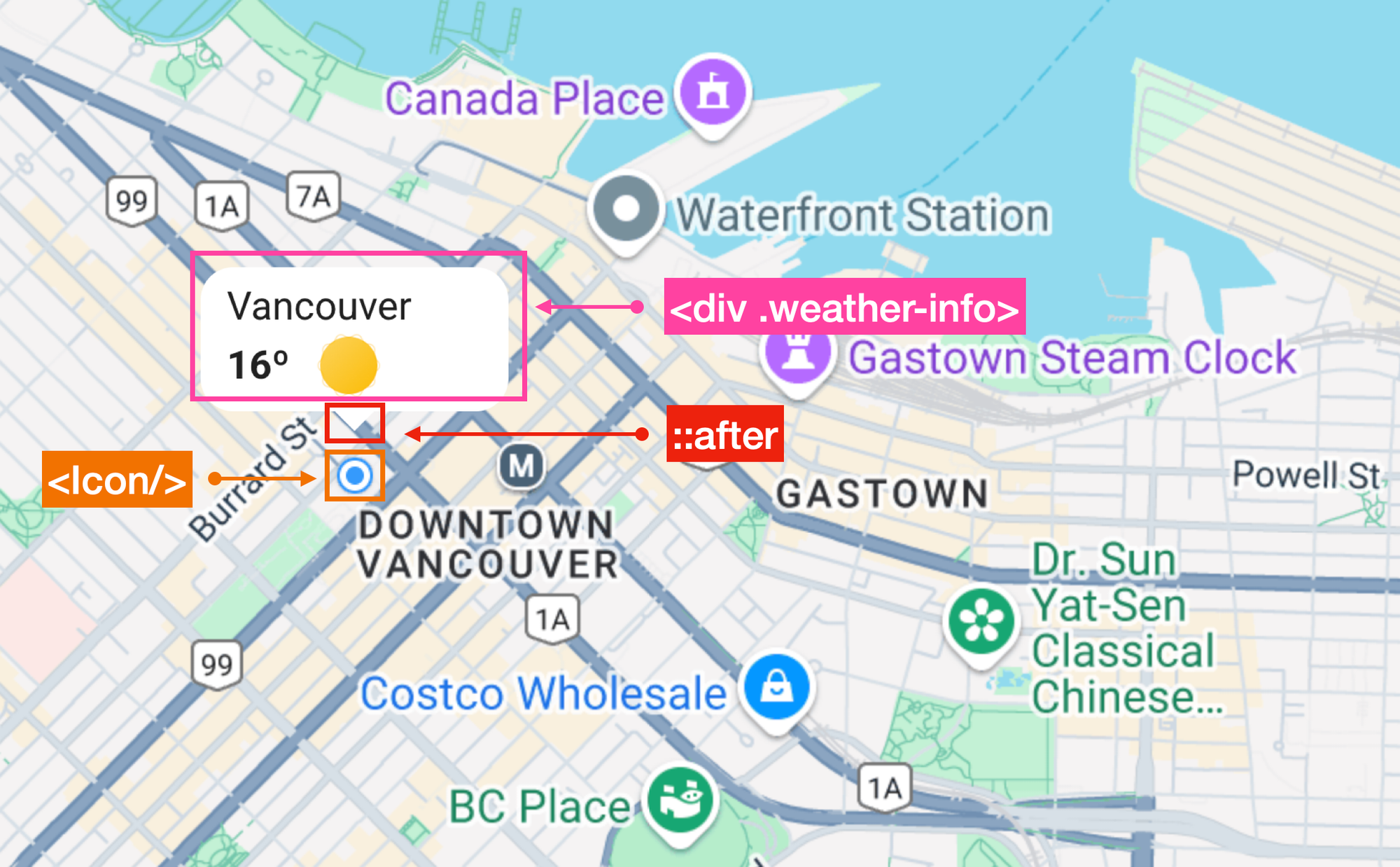

<Marker/> is composed of three distinct visual elements:

1. A rectangular white box with rounded corners (.weather-info) that holds the location name, temperature and weather icon,
2. An ::after pseudo-element to create the downwards pointing triangle arrow,
3. A blue circle <Icon/> that shows up when the marker is clicked.

import { AdvancedMarker } from "@vis.gl/react-google-maps";
import Icon from "../Icon.jsx";
import "./Marker.scss";

const Marker = ({ position, onToggle, weatherData, name, isActive }) => {
  const { degree, iconUrl } = weatherData || {};

  return (
    weatherData && (
      <AdvancedMarker
        position={position}
        className={`Marker ${isActive ? "active" : ""}`}
        zIndex={isActive ? 2 : 1}
        onClick={onToggle}
      >
        <>
          <div className="weather-info">
            <p className="weather-place">{name}</p>

            <span className="weather-display">
              <span className="degree">{Math.round(degree)}º</span>
              <img className="weather-icon" src={iconUrl} alt={""} />
            </span>
          </div>
          <Icon type="stop" />
        </>
      </AdvancedMarker>
    )
  );
};

export default Marker;

Rectangular white box

The .weather-info class creates a clean, compact vertical box with a white background, rounded corners, and nicely spaced text stacked top to bottom

/*** components/GoogleMap/Marker.scss ***/
.weather-info {
  background-color: #fff;
  border-radius: 10px;
  padding: 4px 8px;
  display: flex;
  flex-direction: column;
  color: #212121;
}

Downwards pointing triangle window

The small white triangle pointing downward is created using a CSS border trick - a clever technique that uses the borders of a zero-sized box to render a triangle.

/*** components/GoogleMap/Marker.scss ***/
&::after {
  content: '';
  position: absolute;
  bottom: -6px;
  left: 50%;
  transform: translateX(-50%);
  width: 0;
  height: 0;
  border-left: 8px solid transparent;
  border-right: 8px solid transparent;
  border-top: 8px solid white;
}

First, this line of code:

width: 0;
height: 0;

creates a box with no size — it's invisible by itself. Then, borders are added like this:

border-left: 8px solid transparent;
border-right: 8px solid transparent;
border-top: 8px solid white;

Which creates three borders:

• Left and right borders are transparent, forming the slanted sides
• The top border is solid white, forming the triangle tip

Because the element has zero height, the only visible part is the top border, which looks like a triangle pointing down.

Blue location icon

The <Icon/> component nested inside <AdvancedMarker/> is rendered as a blue circle with a white outline. <Icon/> is taken from Icon.jsx, which in turn imports the SVG directly from assets/svg/index.js with the line import Stop from '~/assets/svg/stop.svg?react';. The "react" at the end tells Vite, our build tool, to import this SVG file as a React component, not just a URL or string. This transforms the SVG into a React component and lets us use it just like any other JSX element e.g. <Icon type="stop"/>.

When a marker is clicked, it triggers an AdvancedMarkerClickEvent event which is detected by the onClick handler that was passed in as a prop to <AdvancedMarker/>. This triggers the attached onToggle() function, which points to handleSetActive() in App.jsx.

/*** App.jsx ***/
const handleSetActive = async (place) => {
  if (!place) return;

  setActivePlace((prev) => (prev?.place_id === place.place_id ? null : place));
  const result = await fetchForecast({
    noOfDays: 7,
    latitude: place.geometry.location.lat(),
    longitude: place.geometry.location.lng(),
  });

  setNextForecast(result);
};

In handleSetActive(), the following takes place:

1. If the clicked place is already active, it sets it to null (i.e. deactivates it, removing the <WeatherForecast/> side bar and the bouncing animation on the marker). Otherwise, it activates the new place and saves it in state to activePlace.
2. Next, it calls the fetchForecast() Weather API wrapper function and passes in the place’s latitude and longitude to retrieve its 7-day forecast.
3. Lastly, it stores the forecast in state so that it can be displayed in the side bar.

If the marker's place_id matches activePlace.place_id, its className becomes "Marker active", which applies a jumping animation to the marker and displays the blue circle (.icon-stop {display: block;}).

/*** components/GoogleMap/Marker.scss ***/
.Marker {

  &.active {
    animation: jump 0.6s infinite;

    .icon-stop {
      display: block;
    }
  }

  .icon-stop {
    display: none;
    position: absolute;
    left: 50%;
    margin-left: -12px;
    bottom: -30px;
  }
}

When a marker is unselected or a different marker is clicked, the current marker is hidden by applying the default display: none style. This is because the JSX code <Icon type="stop"/> compiles to:

<div class="icon-stop">...</div>

WeatherForecast.jsx

WeatherForecast.jsx is a presentational component that displays the 7-day forecast at the selected location. It displays the location name, followed by a list of daily forecasts. Each day includes a daytime and nighttime section with the temperature, precipitation, weather icon, and a short description of weather conditions (weatherCondition.description).

<div class="WeatherForecast">
  ├── <div class="heading">
  │     ├── <h3 class="place">[formatted address]</h3>
  │     └── <Icon type="close" />
  ├── <h4 class="label">7 Day Forecast</h4>
  ├── <div class="day-forecast"> (for each day)
  │     ├── <div class="forecast daytime-forecast">
  │     │     ├── <span class="time-text">[Date]</span>
  │     │     ├── <div class="day-temp">
  │     │     │     ├── <span>[Max Temp]°</span>
  │     │     │     └── <img class="weather-icon" src="[icon]" alt="[description]" />
  │     │     └── <div class="day-description">[Text + precip]</div>
  │     └── <div class="forecast nighttime-forecast">
  │           ├── <span class="time-text">Night</span>
  │           ├── <div class="day-temp">
  │           │     ├── <span>[Min Temp]°</span>
  │           │     └── <img class="weather-icon" src="[icon]" alt="[description]" />
  │           └── <div class="day-description">[Text + precip]</div>

Running Google Maps Weather on your local machine

To try out Google Maps Weather, visit https://google-maps-weather.afi.dev and enter locations in the search box on the left to add them to the map.

To run the app locally, fork both google_maps_weather and google_weather_backend from GitHub. Install dependencies by running npm install in each project. Start the frontend with npm run dev and the backend with npm start, then open http://localhost:3000 in your browser.

Don’t forget to update the .env file in the backend with your Google Maps API key, making sure both the Places API and Weather API are enabled.

Concluding the Google Weather tutorial series

And that's a wrap. In this short tutorial series, I've shown you how to use the Google Maps Weather API to:

1. Build a simple weather app that displays current and forecasted conditions for anywhere in the world,
2. See the weather along your route so that you can plan road trips and delivery routes to avoid bad weather,
3. Recreate the 2011 Google Maps weather layer by building a real time weather map that displays conditions for any location you choose.

It's July 2, 2025, and the Google Weather API officially reached General Availability (GA) today. The API already delivers high resolution weather data, including temperature, precipitation, cloud cover and more, and Google's weather models will only get better particularly as Google begins integrating public weather alerts (such as fires, floods, and hurricanes) and the latest AI models from Google Research.

The Google Weather API is also very popular. Common use cases include:

• Mobility: Dynamically adjusting pricing, optimizing routes for safety and efficiency, and personalizing travel recommendations based on current weather conditions.
• Retail and Advertising: Using weather data to manage inventory, anticipate changes in demand, and target advertising campaigns more effectively.
• Travel: Providing forecasts to help users choose destinations, pack accordingly, and plan activities around expected weather.

I hope you enjoyed reading this tutorial series as much as I enjoyed creating it. Get out there and have fun - but don’t forget to check the weather first!

Part 1: Meet the Google Weather API: Real time weather for maps
Part 2: Build a weather app with the Google Weather API
Part 3: Google Maps weather along route: Weather aware route planner
Part 4: Google Maps Weather: Add a weather layer to Google Maps

👋 As always, if you have any questions or suggestions for me, please reach out or say hello on LinkedIn.
